2014
BOMBARDIER
GLOBAL 6000
S/N 9582
- Aircraft Make: Bombardier Aerospace Corporation
- Aircraft Model: BD-700-1A10 Variant Global 6000
- Date New in Service after Completion: 04 October 2014
- Date Airworthiness Certificate:
22 November 2013 - No Damage History
- Computer Aircraft Maintenance Plan (CAMP)
- Airframe Power-By-The-Hour Plan: Bombardier Smart Part Plus Plan, Rate $443 Per Hour
- Airframe Total Time: 2400 Hours and 0922 Landing Cycles (as of 02 February 2020)
Engines
- Make & Model of Engines: Rolls Royce Deutschland & Co KG Model BR-700-710A2-20
- Engine Power-By-The-Hour Plan: Rolls Royce Corporate Care Plan, Rate $483.19 Per Engine Hour X2 =US$966.38 Per Hour
- Engine Total Time: 2400 Hours / 2400 Hours
- Engine Cycles: 0927 Cycles / 0927 Cycles
APU
- Make & Model Auxiliary Power Unit: Honeywell Model: RE-220
- APU Power-By-The-Hour Plan: Honeywell Maintenance Service Plan (MSP), Rate $129 Per APU Hour
- APU Total Time: 1437 and 2094 Cycles
Weights
- Ramp Weight 99750 LBS
- Takeoff Gross 99500 LBS
- Landing Weight 78600 LBS
- Fuel Capacity 45000 LBS
Features
Heads-Up Display System, (HUD), Enhanced Vision System (EVS), Synthetic Vision System (SVS), FANS1A – CPDLC, ADS- B Out Version 2 and ADS-C, Cabin Management System, External Camera, KU Band Communications System with CNX Acceleration. Global Vison Flight Deck Avionics Software Version 5.
Interior

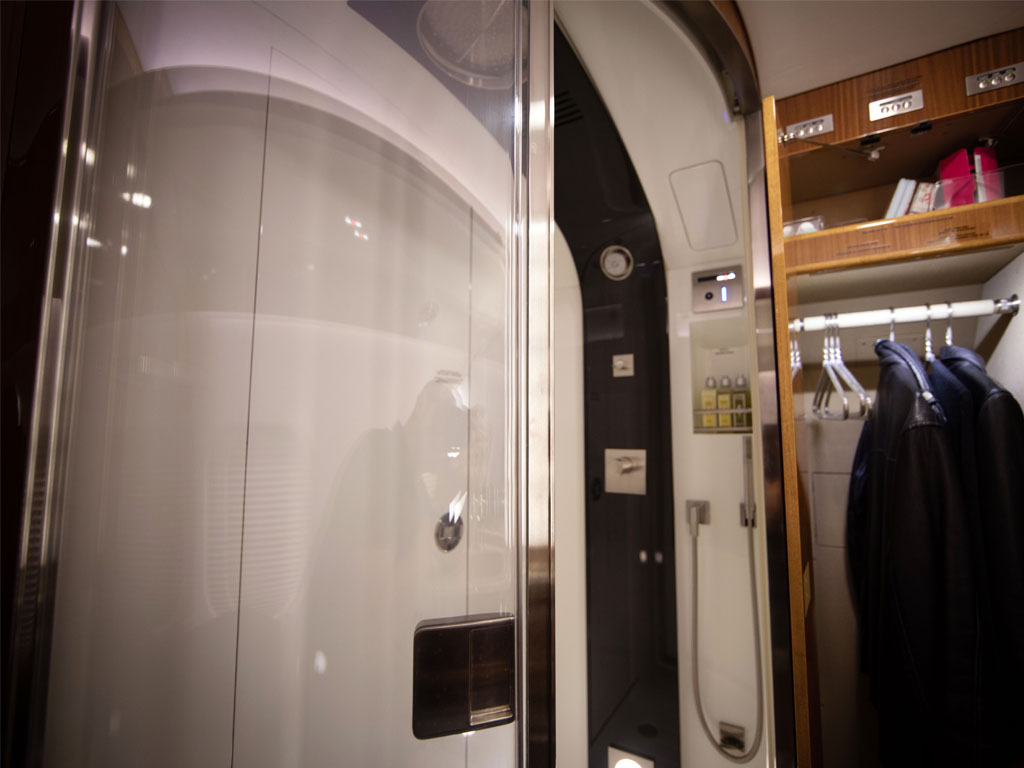

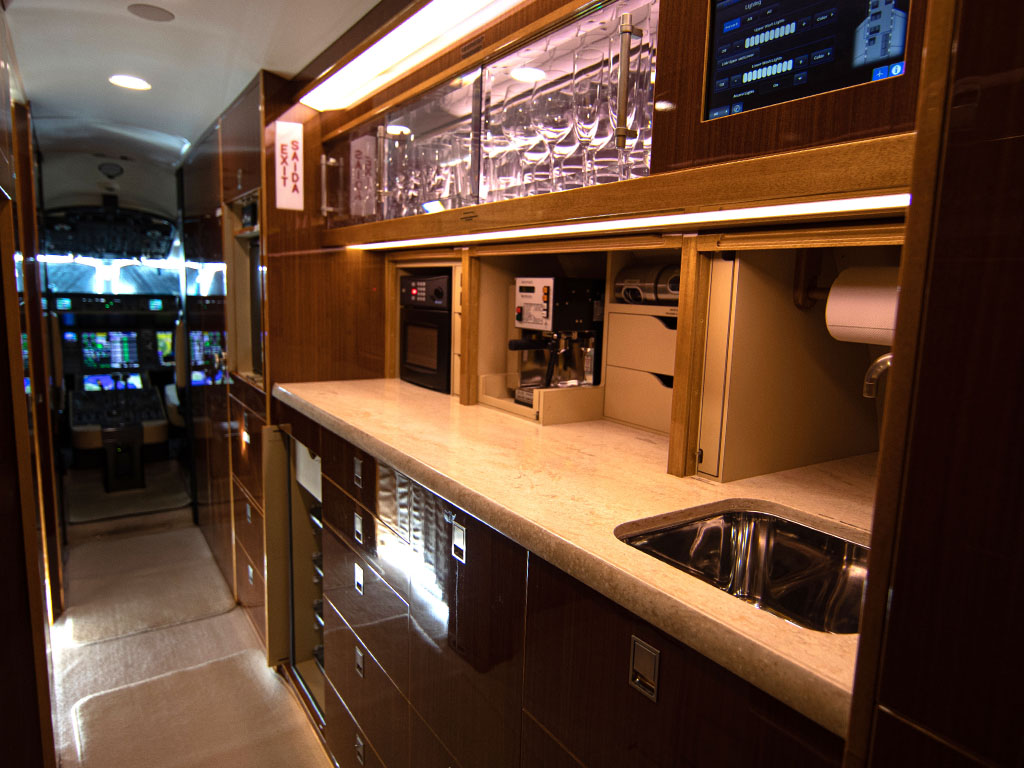

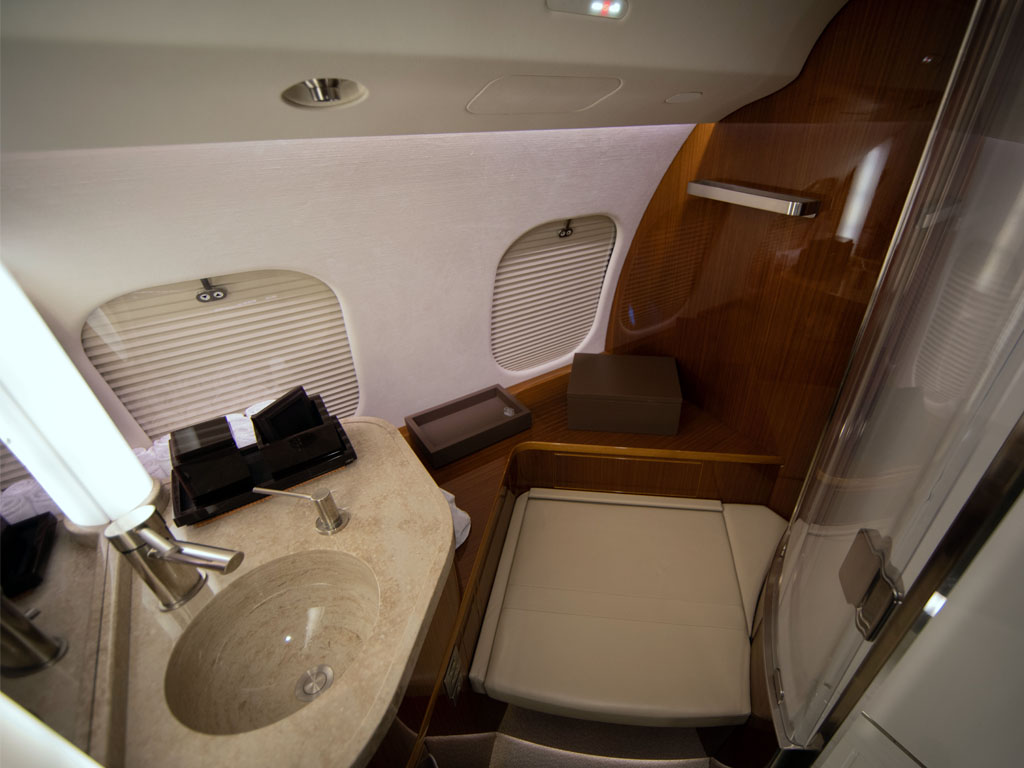

New June 2014. Having 12 Passengers + Flight Deck Crew + Jump Seat + Forward Crew Rest Seating area opposite a Forward Galley, and with Forward Crew Lavatory and Aft VIP Lavatory with Shower.

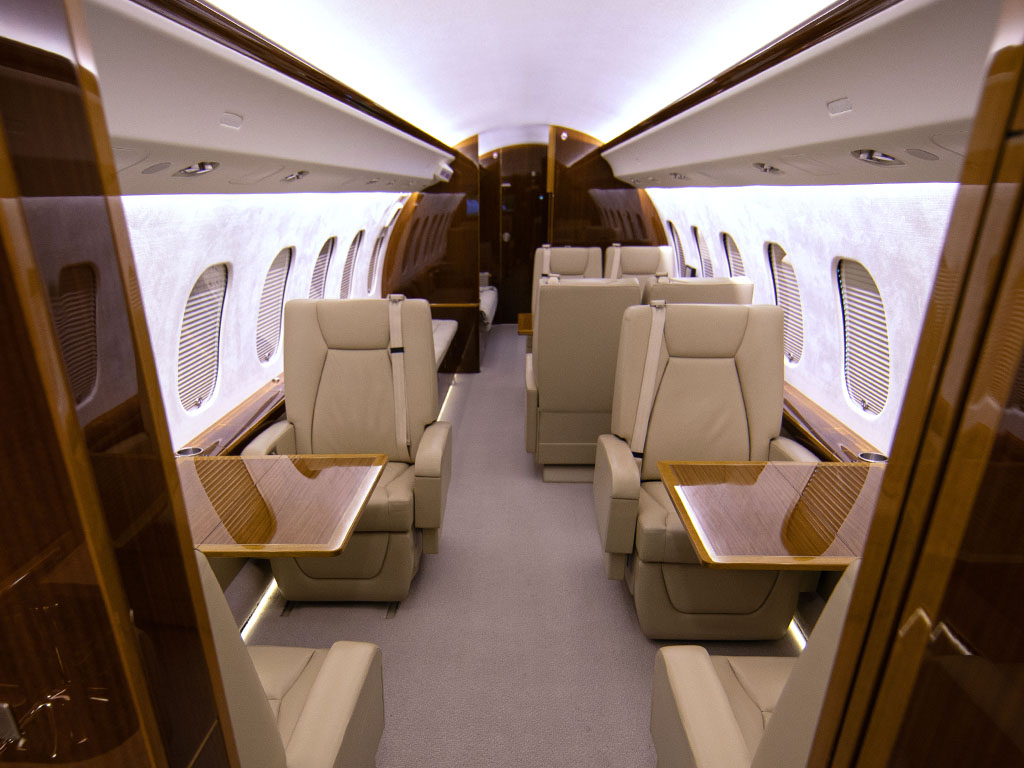

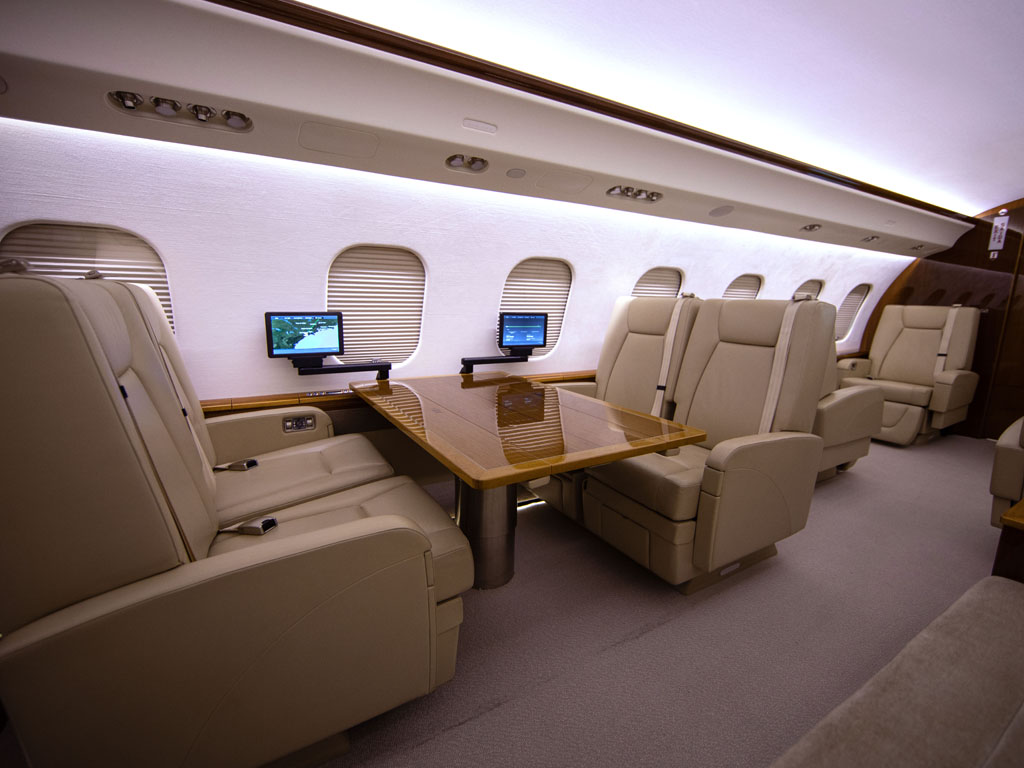

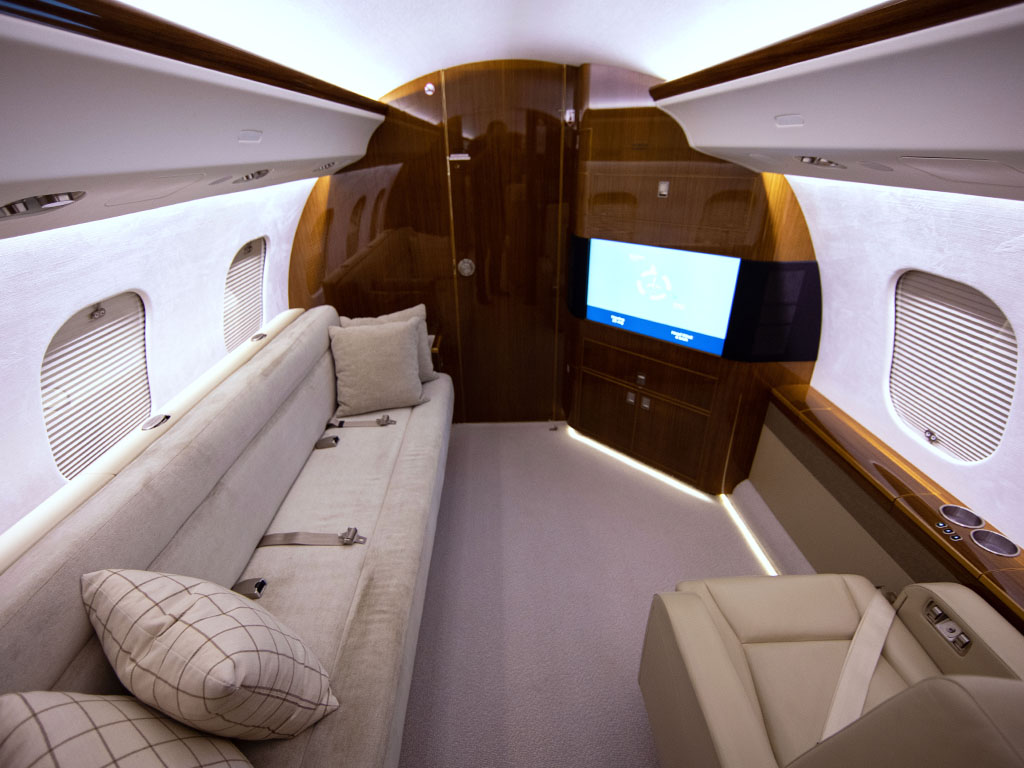

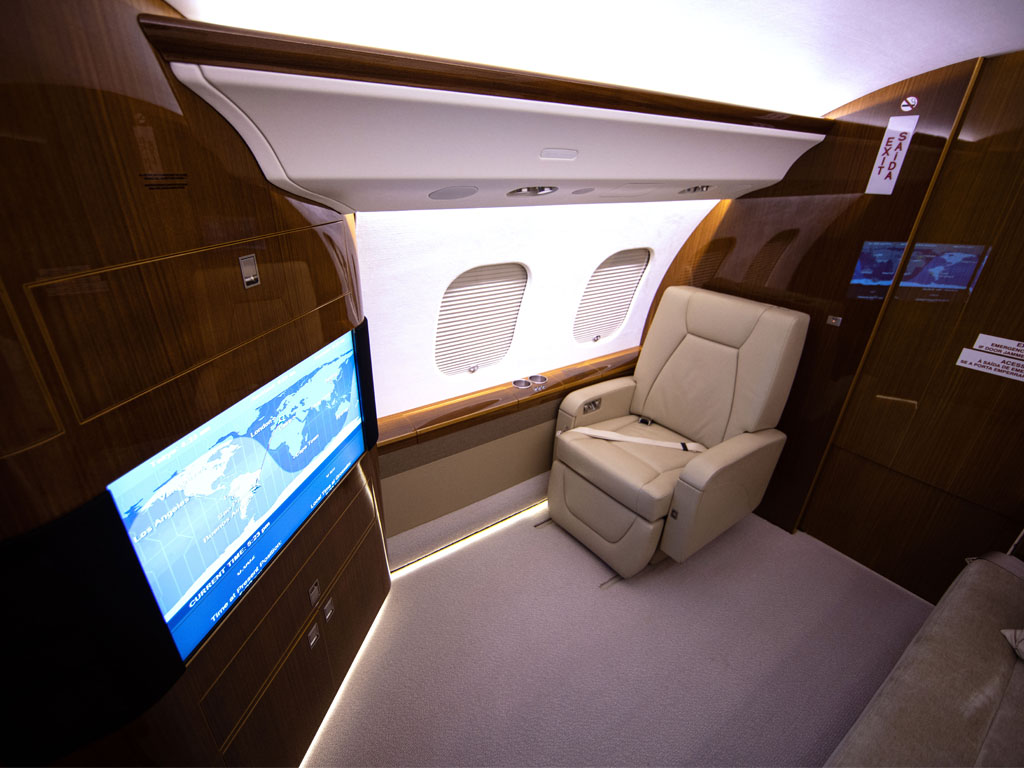

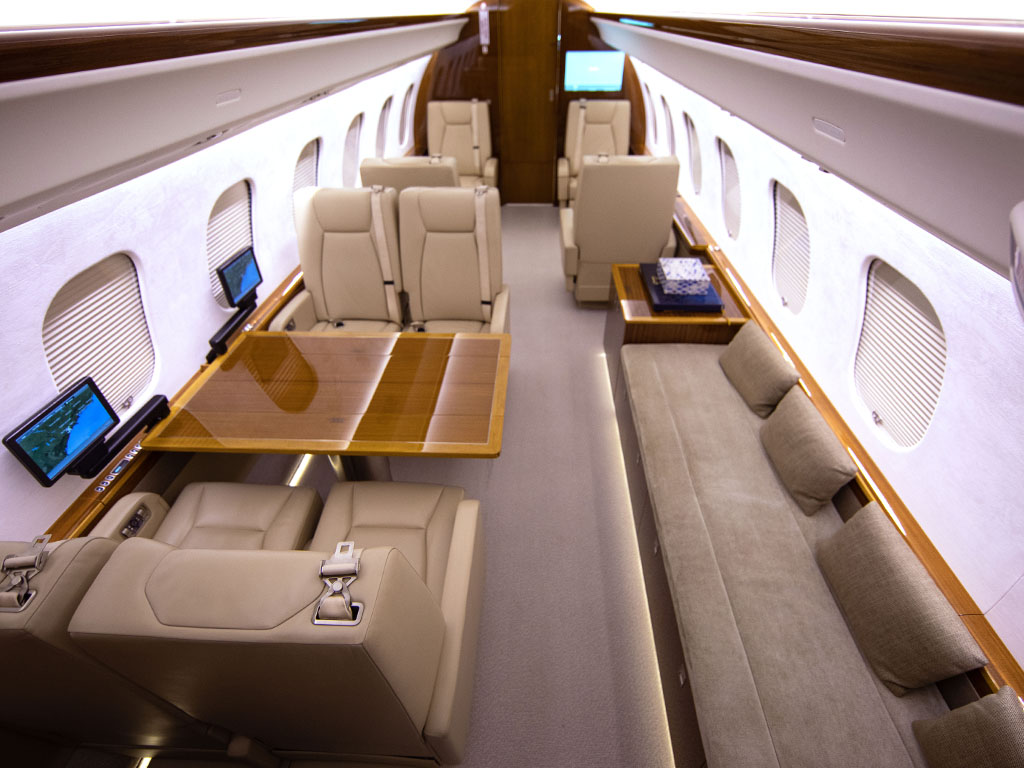

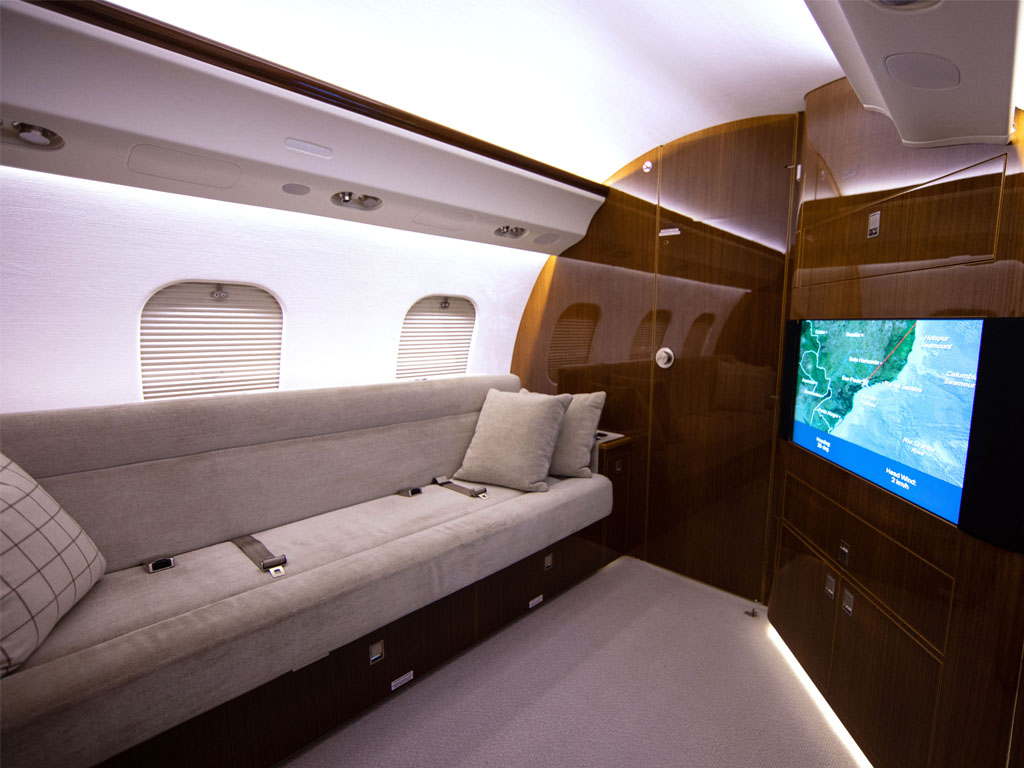

The Forward Cabin has 4 Chairs in Club Arrangement with Pullout Tables, Mid-Cabin has a 4-Place Dinning – Conference Group opposite a 3-Place Sidefacing Divan, Mid to Aft Cabin Divider with Sliding Door, Aft Cabin has a 3-Place (16-G) Sidefacing Divan opposite 1 Chair with a Pullout Table and Entertainment Cabinet.

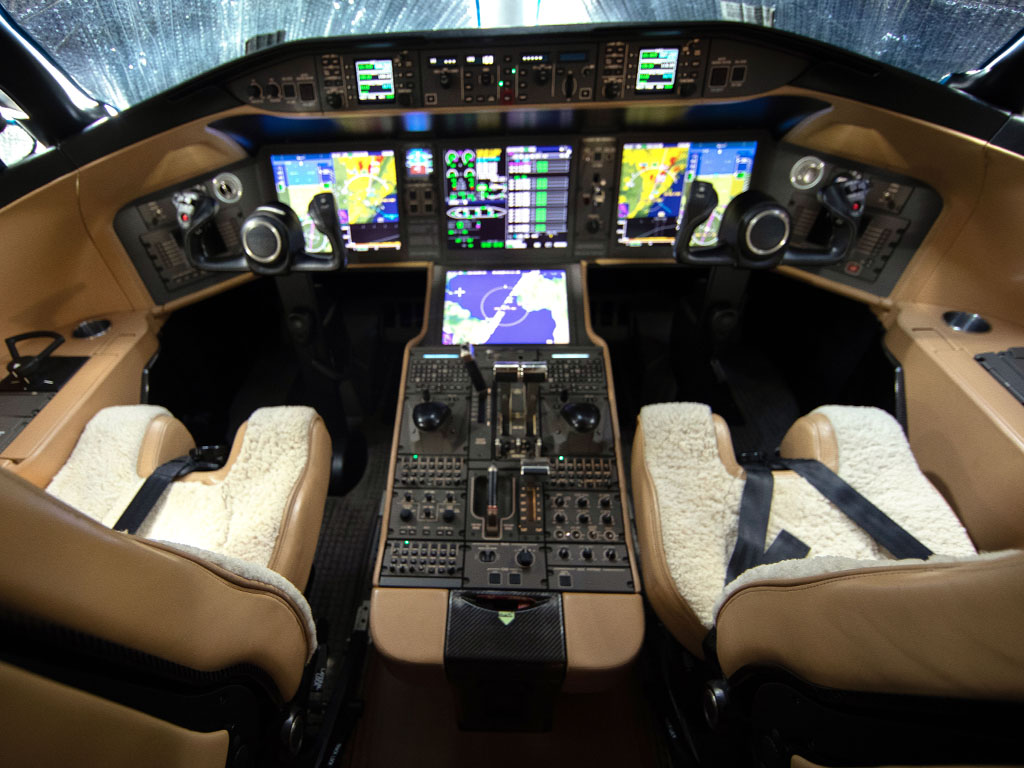

Avionics
- EFIS (Electronic Flight Instrument System)
- Triple Integrated GPS (Global Positioning System)
- ADC (Air Data Computer) Triple Collins ADC-3020
- DME (Distance Measuring Equipment) Dual Collins DME-4000
- HGS (Heads Up Guidance System)
- ADF (Automatic Direction Finder) Dual Collins NAV-4000
- IRU (Inertial Reference System) Triple Honeywell HG-2001GD02
- FLT DIR (Flight Director) Dual Integrated AFCS (Auto Flight Control System)
- A/P (Autopilot) Dual Integrated AFCS (Auto Flight Control System)
- VHF COM (Very High Freq. Communication) Triple Collins VHF-4000
- RIU Dual Collins RIU-4110 w/SELCAL and RIU-4010 w/Datalink
- EGWPS (Enhanced Ground Warning Proximity System) Collins
- CVR (Cockpit Voice Recorder) Single L3 SSCVR 120 min. (per SB 700-23-6010)
- Dual Integrated FMS (Flight Management System)
- Dual Collins GPS-4000S
- NAV (Navigation Radio) Dual Collins NAV-4000
- EVS (Enhanced Vision System)
- SVS (Synthetic Vision System)
- SATCOM (Satellite Communications) Collins SAT 2200
- RADAR Collins RTA-4118
- RADIO ALT (Radio Altimeter) Dual Collins ALT-4000
- LSS (Lightning Sensor System) WX-1000E
- HF COM (High Freq. Com) Dual Collins HF-9031A
- XPNDR (Txp) Dual TDR-94D + TSS-4100 w/ ADS-B
- TCAS II Change 7.1 TSS-4100
Exterior
New in 2014. Allover Matterhorn White with Coll Gray & Sapphire Blue Accents.
